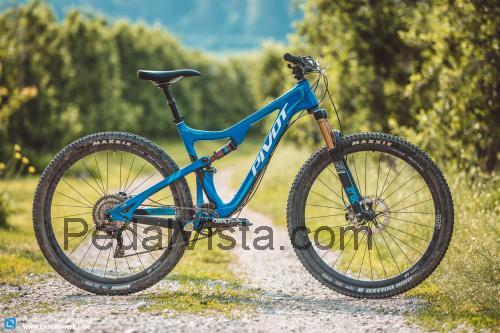

Pivot Cycles Mach 429 Trail Specs and reviews
Pivot Cycles Mach 429 Trail specs
| General Information | |
|---|---|
| Model Name | Pivot Cycles Mach 429 Trail |
| Brand/Manufacturer | Pivot Cycles |
| Year of Release | 2022 |
| Country of Origin | United States |
| Mountain Bike Type | trail |
| Intended Use | all-mountain |
| Frame & Geometry | |
| Frame Material | carbon |
| Frame Size Options | S, M, L, XL |
| Frame Geometry | reach: 425mm - 480mm / stack: 610mm - 640mm / head tube angle: 66.5° / seat tube angle: 74.5° / chainstay length: 430mm / wheelbase: 1155mm - 1251mm |
| Axle Standard | Boost 148mm |
| Bottom Bracket Type | PF92 |
| Headset Type | IS42/IS52 |
| Internal Cable Routing | true |
| Protection Features | frame armor, chainstay protector |
| Suspension System | |
| Suspension Type | full suspension |
| Front Suspension Brand and Model | Fox Float 34 |
| Front Suspension Travel | 130mm |
| Rear Suspension Brand and Model | Fox Float DPS |
| Rear Suspension Travel | 116mm |
| Suspension Adjustments | compression, rebound |
| Suspension Design/Kinematics | DW-link |
| Drivetrain | |
| Drivetrain Type | 1x |
| Number of Speeds | 12-speed |
| Rear Derailleur Model | SRAM X01 Eagle |
| Shifter Brand and Model | SRAM GX Eagle |
| Crankset Details | length: 170mm - 175mm / chainring size: 32T - 34T |
| Cassette Range | 10-52T |
| Chain Type and Brand | SRAM Eagle |
| Q-Factor | 168mm |
| Braking System | |
| Brake Type | hydraulic disc |
| Brake Brand and Model | SRAM G2 RSC |
| Rotor Size | front: 180mm / rear: 180mm |
| Brake Mount Standard | post mount |
| Brake Pads | organic |
| Wheels & Tires | |
| Wheel Size | 29" |
| Rim Material and Width | aluminum, internal 30mm |
| Hub Type and Engagement | rapid engagement |
| Tubeless Ready | true |
| Tire Brand, Model, and Width | Maxxis Minion DHF/DHR II, 2.3" |
| Tire Compound and Sidewall Casing | dual compound, EXO |
| Tire Tread Pattern and Intended Terrain | aggressive tread, all-mountain |
| Max Tire Pressure | 35 PSI |
| Insert Compatibility | CushCore-ready |
| Cockpit & Contact Points | |
| Handlebar Type | riser |
| Handlebar Material | aluminum |
| Stem Length and Angle | 50mm, 0° |
| Grips Type | lock-on |
| Saddle Brand and Model | WTB Volt |
| Seatpost Type | dropper |
| Dropper Post Travel | 150mm |
| Seatpost Diameter | 31.6mm |
| Pedals Included | false |
| Headset Brand and Bearing Type | Pivot Precision Sealed Cartridge |
| Geometry & Fit | |
| Available Frame Sizes | S, M, L, XL |
| Standover Height | S: 745mm, M: 765mm, L: 770mm, XL: 775mm |
| Rider Height Range | 5'4" - 6'4" |
| Stack and Reach | 620mm - 480mm |
| Effective Top Tube Length | 580mm - 650mm |
| Chainstay Length | 430mm |
| Bottom Bracket Drop and Height | 33mm drop, 340mm height |
| Head Tube and Seat Tube Lengths | varies by frame size |
| Price & Availability | |
| MSRP | $5,499 |
| Market Availability | North America, Europe, Australia |
| Color Options | Matte Black, Dark Blue |
| Warranty Coverage | frame: 5 years, components: varies |
Pros and Cons of Pivot Cycles Mach 429 Trail
| Pros | Cons |
|---|---|
| Excellent climbing ability | Higher price point |
| Responsive handling on descents | May feel a bit sluggish on flat terrain |
| Comfortable and efficient for long rides | Limited color options |
| High-quality build and components | May require frequent maintenance |
Common Issues and Problems with Pivot Cycles Mach 429 Trail
| Common Problems with Pivot Cycles Mach 429 Trail |
| 1. Rear suspension pivot bearings may develop play over time. |
| 2. Dropper post cable routing can be challenging and may lead to cable wear. |
| 3. Creaking noises from the bottom bracket area due to dirt or worn components. |
| 4. Rear derailleur hanger alignment issues impacting gear shifting performance. |
| 5. Fork seals may leak, causing loss of fork performance and oil leakage. |
| 6. Brake rotor rubbing against the caliper due to misalignment or bent rotor. |
| 7. Loose headset causing steering issues and play in the front end. |
User Reviews of Pivot Cycles Mach 429 Trail
| Name | Review |
|---|---|
| Emily | The Pivot Cycles Mach 429 Trail bike is a fantastic all-around performer. It climbs like a champ and descends with confidence. The geometry is spot on for aggressive trail riding. |
| Michael | I've been riding the Mach 429 Trail for a few months now, and I'm impressed with its versatility. It's a fast and nimble bike that handles technical terrain well. Definitely recommend it. |
| Sarah | The Mach 429 Trail is a dream to ride. The suspension system is plush and responsive, providing a smooth and enjoyable experience on the trails. I couldn't be happier with my purchase. |
| David | I've owned several mountain bikes over the years, and the Pivot Cycles Mach 429 Trail is by far one of the best. It's lightweight, durable, and offers a great balance of efficiency and fun on the trails. |
Common Questions About Pivot Cycles Mach 429 Trail
-
Is the Pivot Cycles Mach 429 Trail bike suitable for beginners?
Yes, this bike is versatile and forgiving, making it a great choice for riders looking to progress their skills.
-
What makes the Pivot Cycles Mach 429 Trail stand out from other trail bikes?
Its balanced geometry, efficient suspension design, and high-quality components set it apart for all-mountain adventures.
-
Can the Pivot Mach 429 Trail handle technical descents?
Absolutely! The bike's capable suspension and stable handling inspire confidence on challenging terrain.
-
Does the Pivot Mach 429 Trail come with a dropper post?
Yes, it includes a 150mm dropper post for seamless transitions between climbing and descending.
-
Are there any additional protection features on the Pivot Mach 429 Trail?
Yes, it comes with frame armor and a chainstay protector to safeguard the bike against impacts and debris.
-
What type of terrain is the Maxxis Minion DHF/DHR II tire set on the Pivot Mach 429 Trail best suited for?
These tires excel on aggressive trails with a mix of loose and hard-packed surfaces, offering excellent grip and durability.
-
How does the DW-link suspension design on the Pivot Mach 429 Trail enhance the riding experience?
The DW-link design provides efficient pedaling performance while offering excellent traction and control over rough terrain.
-
What is the warranty coverage like for the Pivot Mach 429 Trail?
The frame is backed by a 5-year warranty, while component coverage may vary; it's always best to check with the manufacturer.
-
What is the maximum tire pressure recommended for the Maxxis Minion DHF/DHR II tires on the Pivot Mach 429 Trail?
The recommended maximum tire pressure is 35 PSI for optimal performance and traction.
-
Can the Pivot Mach 429 Trail accommodate riders of different heights?
Yes, with frame sizes ranging from S to XL and adjustable components, the bike can cater to a wide range of rider heights.
