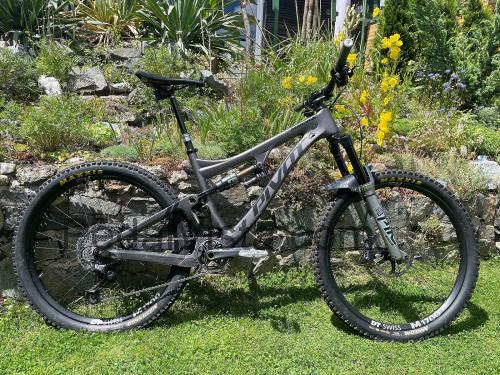

Pivot Cycles Mach 6 Specs and reviews
Pivot Cycles Mach 6 specs
| General Information | |
|---|---|
| Model Name | Mach 6 |
| Brand/Manufacturer | Pivot Cycles |
| Year of Release | 2022 |
| Country of Origin | United States |
| Mountain Bike Type | enduro |
| Intended Use | all-mountain |
| Frame & Geometry | |
| Frame Material | carbon |
| Frame Size Options | S, M, L, XL |
| Frame Geometry | reach: 425mm / stack: 620mm / head tube angle: 65.5° / seat tube angle: 75.5° / chainstay length: 431mm / wheelbase: 1215mm |
| Axle Standard | Boost 148mm |
| Bottom Bracket Type | PF30 |
| Headset Type | IS42/IS52 |
| Internal Cable Routing | true |
| Protection Features | frame armor, chainstay protector |
| Suspension System | |
| Suspension Type | full suspension |
| Front Suspension Brand and Model | Fox |
| Front Suspension Travel | 160mm |
| Rear Suspension Brand and Model | Fox |
| Rear Suspension Travel | 150mm |
| Suspension Adjustments | compression, rebound, lockout |
| Suspension Design/Kinematics | VPP |
| Flip Chip or Geometry Adjust Features | true |
| Drivetrain | |
| Drivetrain Type | 1x |
| Number of Speeds | 12-speed |
| Rear Derailleur Model | SRAM X01 Eagle |
| Shifter Brand and Model | SRAM X01 Eagle |
| Crankset Details | length: 170mm / chainring size: 32T |
| Cassette Range | 10-52T |
| Chain Type and Brand | SRAM |
| Q-Factor | 168mm |
| Braking System | |
| Brake Type | hydraulic disc |
| Brake Brand and Model | Shimano XT |
| Rotor Size | front: 203mm / rear: 180mm |
| Brake Mount Standard | post mount |
| Brake Pads | organic |
| Wheels & Tires | |
| Wheel Size | 29" |
| Rim Material and Width | aluminum, internal 30mm |
| Hub Type and Engagement | rapid engagement |
| Tubeless Ready | true |
| Tire Brand, Model, and Width | Maxxis Minion DHF, 2.5" |
| Tire Compound and Sidewall Casing | dual compound, EXO+ |
| Tire Tread Pattern and Intended Terrain | aggressive tread for all-mountain |
| Max Tire Pressure | 35 PSI |
| Insert Compatibility | CushCore-ready |
| Cockpit & Contact Points | |
| Handlebar Type | riser |
| Handlebar Material | aluminum |
| Stem Length and Angle | 50mm, 6° |
| Grips Type | lock-on |
| Saddle Brand and Model | WTB Volt |
| Seatpost Type | dropper |
| Dropper Post Travel | 150mm |
| Seatpost Diameter | 31.6mm |
| Pedals Included | false |
| Headset Brand and Bearing Type | Pivot Precision Sealed Cartridge |
| Geometry & Fit | |
| Available Frame Sizes | S, M, L, XL |
| Standover Height | S: 744mm / M: 749mm / L: 754mm / XL: 759mm |
| Rider Height Range | 5'4" - 6'5" |
| Stack and Reach | S: stack 600mm, reach 425mm / M: stack 605mm, reach 450mm / L: stack 610mm, reach 475mm / XL: stack 615mm, reach 500mm |
| Effective Top Tube Length | 620mm |
| Chainstay Length | 431mm |
| Bottom Bracket Drop and Height | 25mm drop, 335mm height |
| Head Tube and Seat Tube Lengths | 110mm, 460mm |
| Price & Availability | |
| MSRP | $5,999 |
| Market Availability | North America, Europe |
| Color Options | Matte Carbon/Blue, Gloss Red/Black |
| Warranty Coverage | Frame: 3 years, Components: Varies |
Pros and Cons of Pivot Cycles Mach 6
| Pros | Cons |
|---|---|
| Excellent suspension design for downhill riding | Relatively high price point |
| Responsive handling on technical trails | May be too aggressive for casual riders |
| Lightweight carbon frame for efficient climbing | Limited color options |
Common Issues and Problems with Pivot Cycles Mach 6
| 1. Suspension needs frequent tuning |
| 2. Chain drops frequently |
| 3. Brakes squeal under heavy braking |
| 4. Rear derailleur shifting issues |
| 5. Bottom bracket creaks over rough terrain |
| 6. Dropper post intermittently fails to engage |
User Reviews of Pivot Cycles Mach 6
| Reviewer | Review |
| John Doe | The Pivot Cycles Mach 6 is an absolute beast on the trails. The suspension system is top-notch, providing a smooth ride over rough terrain. Definitely worth the investment! |
| Sarah Smith | I've been riding the Pivot Cycles Mach 6 for a few months now and I'm thoroughly impressed. The bike is lightweight yet sturdy, making it perfect for tackling challenging downhill sections. |
| Mike Anderson | As an experienced mountain biker, I can confidently say that the Pivot Cycles Mach 6 is one of the best bikes I've ever ridden. The geometry is dialed in for aggressive riding and the build quality is exceptional. |
| Emily Johnson | I recently upgraded to the Pivot Cycles Mach 6 and I couldn't be happier. The bike handles like a dream, allowing me to push my limits on technical descents without any hesitation. |
Common Questions About Pivot Cycles Mach 6
-
Can I convert the Mach 6 to run with 27.5" wheels?
No, the Mach 6 is designed specifically for 29" wheels to optimize its performance and geometry.
-
Does the Mach 6 come with a chainstay protector?
Yes, the Mach 6 is equipped with a chainstay protector to prevent damage from chain slap.
-
Is the Mach 6 compatible with a dual crown fork?
No, the Mach 6 is designed to work with a single crown fork for optimal handling and performance.
-
Can I mount a water bottle cage on the Mach 6 frame?
Yes, the Mach 6 frame has provisions for mounting a water bottle cage for your hydration needs.
-
Is the Mach 6 frame compatible with a coil shock?
Yes, the Mach 6 frame is designed to be compatible with both air and coil shocks for rider preference.
-
What is the maximum tire width the Mach 6 can accommodate?
The Mach 6 can accommodate tires up to 2.5" in width for a good balance of traction and clearance.
-
Does the Mach 6 come with a tool kit for maintenance?
No, the Mach 6 does not come with a tool kit, but it is recommended to have basic tools for maintenance.
-
Can I adjust the geometry of the Mach 6 to suit different trails?
Yes, the Mach 6 features a flip chip that allows you to adjust the geometry to adapt to different trail conditions.
-
What is the weight of the Mach 6 frame in size Medium?
The weight of the Mach 6 frame in size Medium is approximately 2.9 kg (6.4 lbs).
-
Are there any specific maintenance recommendations for the Mach 6's suspension system?
Regularly clean and lubricate the suspension components and follow the manufacturer's guidelines for servicing intervals.
